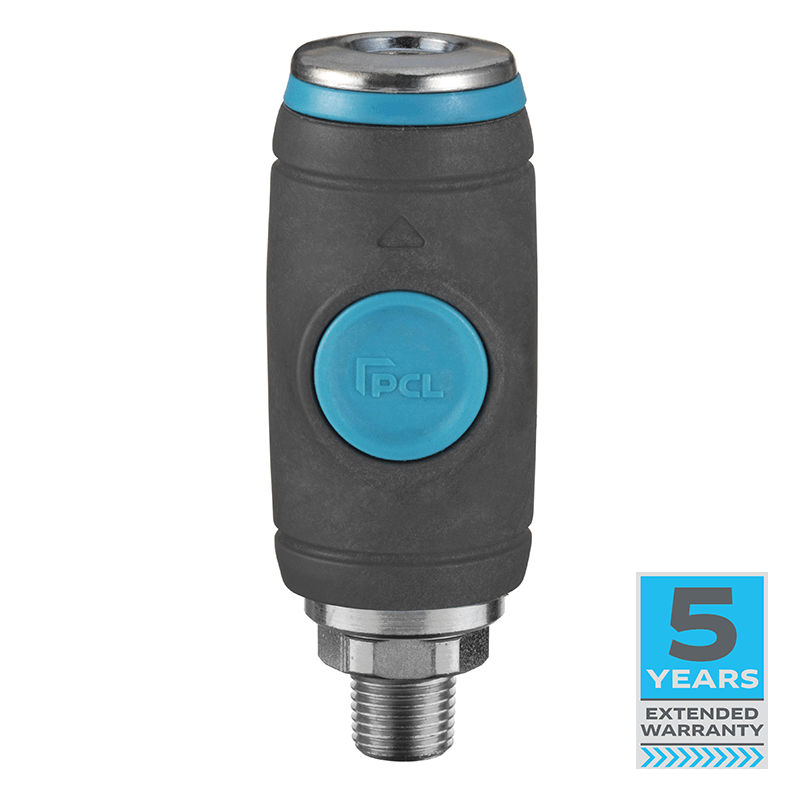

Push Button Safety Coupling, Male Thread R1/4

Description

Push Fit PCL Coupling Features

• Designed-engineered by the only UK Manufacturer of Safety Couplings
• Two-stage self venting release eliminating the dangers of hose whip
• Compatible with Standard Adaptors
• Hardened machined steel parts
• Lightweight & robust composite outer body
• Date Stamp – Production date for tracking and quality
• British Standard Profile
• Conforms to ISO 4414:2010

Male Thread R1/4 Specification

• Weight – 0.175 KG
• EAN – 5014875169842
• Brand – PCL
• Coupling Style – Coupling
• Thread Type – Male
• Thread Size – R 1/4
• Nominal Bore – 4.8mm
• Flow Rate – 43 cfm @ 100 psi
• Max Working Pressure –  10 bar / 145 psi
• Temperature Range, -20°C to 70°C
• Interchange – Rectus 19, Prevost BSI 06
